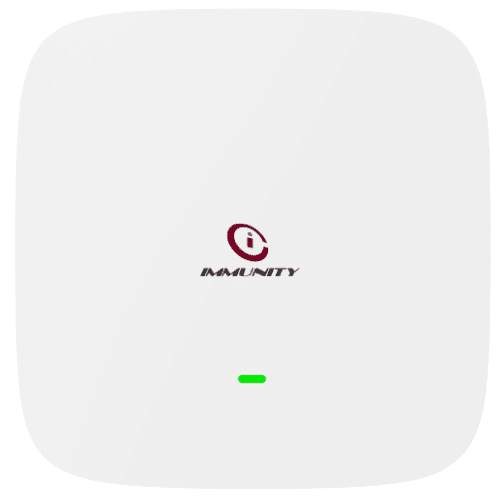

Immunity Lotus Alpha

Non-returnable

Wi-Fi6 11ax 1800Mbps high power Indoor Wireless Access Point

  • 360°omnidirectional Wi-Fi coverage.
  • Dual Power Supply options supports both POE and Adapter.
  • 120+ Concurrent Users Support.

Choose Quantity
₹15,000.00 ₹18,000.00
+ Add to Cart+ Adding to cart
Immunity Lotus Alpha
Immunity Lotus Alpha
Immunity Lotus Alpha
Immunity Lotus Alpha
Product Details
Specifications

Immunity Lotus Alpha AP is an 11ax Wi-Fi6 standard MTK Chipset high power industrial Indoor Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.

 Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.



Main Features:

Wireless data rate up to 1.8Gbps. 802.11ax support 1024QAM, long OFDM symbol, 160M bandwidth and 11ax 2x2 MIMO technology, the wireless data rate up to 1.8Gbps, meet with demand of high-speed applications such as VR/ AR, 4K or 8K stream media.



Advanced 1024 QAM Technology

1024-QAM Modulation Mode. 802.11ax adopt 1024-QAM modulation, which is more efficient than 802.11ac modulation, the throughput of single spatial traffic is increased by 25%.


MU-MIMO for Super Fast Speed:

DL/ UL MU-MIMO. 802.11ax support both downlink MU-MIMO and uplink MU-MIMO. It can communicate with multiple end users at the same time, greatly improving the user’s uplink transmission rate and the system’s uplink and downlink capacity, improving the efficiency of multi-user concurrent scenarios, reducing the terminal application latency.


Intelligent TWT Operation:

TWT (Target Wake-up Time). 802.11ax support TWT, allowing devices to negotiate when need to wake up, send and receive data. In additional, wireless AP can group the device into different TWT cycles, increase sleep time, reduce the device competing after wake-up, and save the device power.



Intelligent Wi-Fi Coverage:

Coverage Improvement. 802.11ax support long OFDM symbol transmission mechanism and 2MHz narrowband transmission, effectively reduced the packet loss rate and noise interference, improve the receive sensitivity and increase the Wi-Fi coverage.



Anti-Interference Control Ability:

Improvement of Anti-Interference Ability. 802.11ax support BSS color bit and dynamic CCA-SD (Clear Channel Assessment Signal Detection) threshold and power adjustment, effectively alleviates the channel interference in multi-users scenarios, improve the utilization of spectrum resources.


Software Specifications
  • Firmware
    PMWANI
Hardware Specifications
  • CPU Details
    Mediatek
  • RAM
    256MB
  • Flash Memory
    16MB
  • MU-MIMO
    2x2
  • Antenna Count
    4
  • 2.4 Ghz Radio
    Supported on Dual Antenna
  • 5.8 Ghz Radio
    Supported on Dual Antenna
  • IP Rating
    IP61
  • Mounting Type
    Ceiling Mounted
  • Antenna Power
    4dbi
  • Concurrent User Count
    120
  • WAN Port
    1 x 10/100/1000 MBPS
  • LAN Port
    1 x 10/100/1000 MBPS
  • Wifi Throughput
    1800 Mbps
