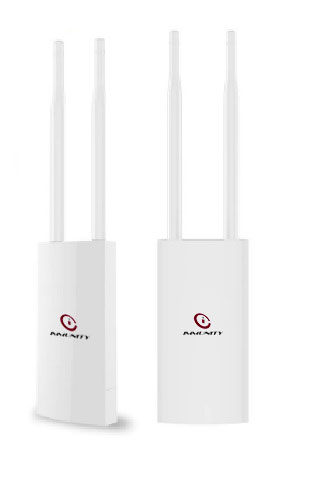

Immunity OD 1200 uses Qualcomm QCA9531+QCA9886 main chip, with 256 MB high-speed memory, 16 MB flash memory, providing a b data forwarding and processing capabilities. You can use it at scenic spot, community, park, school, plant area, shopping mall or villages.
Built-in Power Amplifier
Applied with SE2576L power amplifier that improves wireless network reception and transmission function. Suit for outdoor wide range coverage.
100-plus Wireless Clients Capacity
A single AP can handle 100 wireless devices concurrently and ensure stable and lag-free network experience.
Stand Up Severe Outdoor Environment
Outdoor IP66 rating provides the ability to handle different kinds of rugged surroundings.
POE Power Supply
The router supports Power over Ethernet. This solves the power supply problem in outdoor situations. Users can flexibly place devices according to the demands.
Plug type: EU
Wireless rate: 1200Mbps
Frequency band: 2.4G+5.8G
Power amplifier: SE2576L, SKY85728-11
Recommended clients capacity: 120 sets (2.4G+5.8G）
Anttennas: 2*5dBi external antennas
Transmitting power: 500mW
Receiving sensitivity: -96dBm
Working frequency: 802.11b/g/n: 2.412GHz-2.484GHz
Data rate: 2.4GHz: 300Mbps
Physical interface: 1*10/100Mbps WAN RJ45 Ethernet ports to support POE power supply
1*10/100Mbps LAN RJ45 Ethernet ports to support POE power supply
1* RESET buttons
Power consumption: < 13W
Protection level: IP66 grade
Item size: 35.3 * 8.5 * 4.4cm / 13.89 * 3.34 * 1.73in(L * W * H)
Package weight: 523g / 18.45oz
- CPU DetailsQualcomm
- Flash Memory16MB
- Antenna Count2
- 2.4 Ghz RadioSupported
- 5.8 Ghz RadioSupported
- IP RatingIP67
- Mounting TypePole Mounted
- Antenna Power5dbi
- Concurrent User Count100
- WAN Port1 x 10/100/1000 MBPS
- LAN Port1 x 10/100/1000 MBPS
- Wifi Throughput1200 Mbps
